Produktname
K4-MED

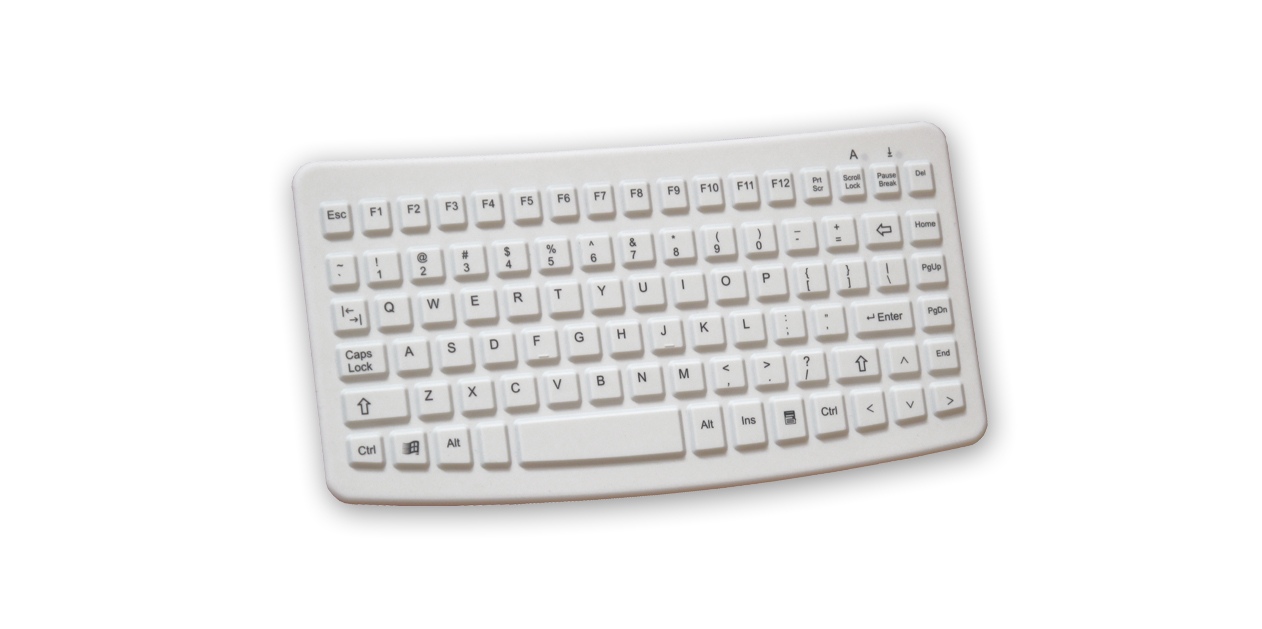

Produktbild
Info
| Number of keys: | .......................... | 87 |
| Protection: | .......................... | IP68 |
| Activation force: | .......................... | 1 N |
| Interface | .......................... | USB |
| Size: | .......................... | 257 x 132 x 21mm |
| Operation temperature: | .......................... | -20 °C to +60 °C |
Merkliste
Technical specification
| Bezeichnung | Angabe |
|---|---|
| Switching technology: | Carbon-on-Gold contact |
| Number of keys: | 87 (incl. 12 Function keys) |
| Protection: | IP68 (NEMA 4, 4X) - submersible |
| Key travel: | 1,25 mm |
| Activation force: | 1 N |
| Life: | approx. 2 Mio. operations |
| Chassis: | Desktop |
| Interface: | USB |
| Power: | 12mA@5V |
| Size: | 257 x 132 x 21 mm |
| Operation temperature: | -20 °C to +60 °C |
| Humidity: | to 100% |
| Shock: | 3x11 ms pulses (50g) each axes |
| Vibration: | 0,04g/Hz, 20Hz-2kHz, 3 hours |
| Certifications: | CE; FCC Class15, Part B |
Features
- 87 keys, including 12 function keys
- Ultra compact layout
- Complete protection against dust and liquids according IP68 (submersible)
- Washable, no seams or crevices
- Resistant against most common detergents and disinfection materials
- Low profile key design for easy and efficient cleaning
- Sealing lip, cable entry rear side -> easy integrable
- Ergonomically low profile chassis
- Low force and precise feedback key technology
- MS Windows keys
- USB-, PS/2-Combointerface
Downloads
Ordering information
| Part number | Product name | Features |
|---|---|---|
| PS00560 | K4-MED-USB-GER | German layout |
| PS00561 | K4-MED-USB-US | US layout |
| Additional layouts available on request! |
Branche
Medizin, Mobilanwendungen, Lebensmittelverarbeitung
