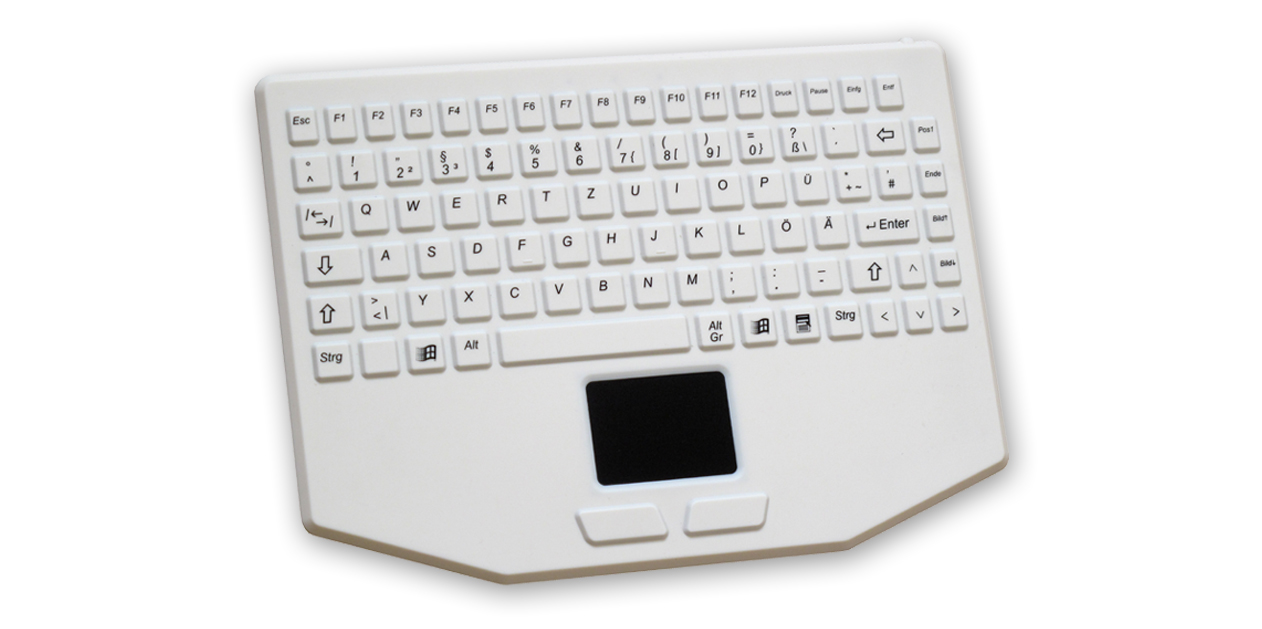

Produktname
K20-MED
Info
Number of keys: | ........................ | 88 |
Protection: | ........................ | IP68 |
Activation force: | ........................ | 1,2 N |
Interface | ........................ | USB |
Size: | ........................ | 296 x 212 x 13 mm |
Operation temperature: | ........................ | 0 °C to +60 °C |
Merkliste
Technical specification
Bezeichnung | Angabe |
---|---|
Switching technology: | Carbon-on-Gold contact |
Number of keys: | 88 |
Protection: | IP68 (NEMA 4, 4X) - submersible |
Key travel: | 1,25 mm |
Activation force: | 1,2 N |
Life: | approx. 2 Mio. operations |
Chassis: | Desktop |
Interface: | USB |
Power: | 20mA@5V |
Size: | 296 x 212 x 13 mm |
Operation temperature: | -20 °C to +60 °C |
Humidity: | to 100% |
Shock: | 3x11 ms pulses (50g) each axes |
Vibration: | 0,04g/Hz, 20Hz-2kHz, 3 hours |
Certifications: | CE; FCC Class15, Part B |
Features
- 88 keys
- Compact size, notebook style layout
- Complete protection against dust and liquids according IP68 (submersible)
- Low profile key design for easy and efficient cleaning
- Washable, no seams or crevices
- Low profile key design for easy and efficient cleaning
- Resistant against most common detergents and disinfection materials
- Sterilized in seconds, no need for expensive sterilization methods
- Ergonomically low profile chassis
- Silent low noise typing
- Low force and precise feedback key technology
- Incorporated high resolution touchpad
- MS Windows keys
- Lock-function to avoid unintended inputs while cleaning
- Magnetic fixing option
- Numberpad can be add on 2nd key layer (on option)
- USB-Interface
Downloads
Ordering information
Part number | Product name | Features |
---|---|---|
PS00640 | K20-MED-USB-GER | German layout |
PS00641 | K20-MED-USB-US | US layout |
Additional layouts available on request! |
Branche
Industrieautomation, Medizin, Lebensmittelverarbeitung
