Produktname

K2-MED-BL

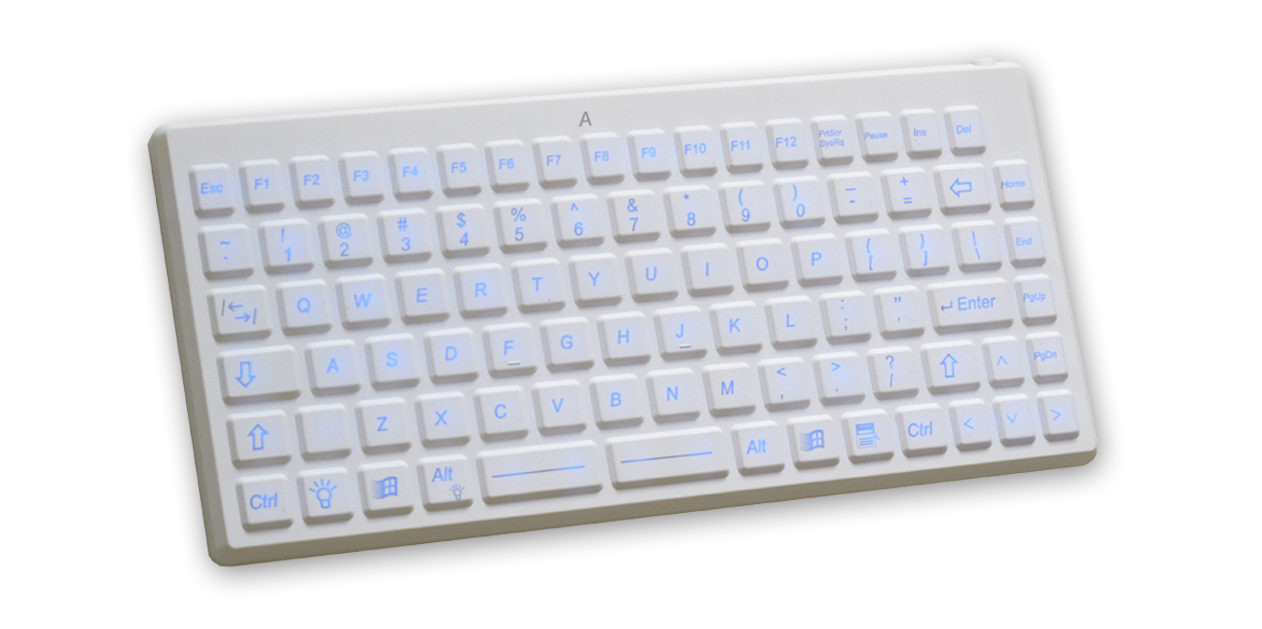

Produktbild
K2-MED-BL
Info



Number of keys:  .............................. 88
Protection:  .............................. IP68
Activation force: .............................. 1 N
Interface .............................. USB
Size: .............................. 290 x 134 x 13 mm
Operation temperature: .............................. -20 °C to +60 °C
Merkliste

K2-MED-BL

Technical specification

BezeichnungAngabe
Switching technology: Carbon-on-Gold contact
Number of keys: 88
Protection: IP68 (NEMA 4, 4X) - submersible
Key travel: 1,25 mm
Activation force: 1 N
Life: >10 Mio. operations
Chassis:Desktop
Interface: USB
Power:12mA@5V (max. 200mA with BL)
Size:290 x 134 x 13 mm
Operation temperature: -20 °C to +60 °C
Humidity: to 100%
Shock:3x11 ms pulses (50g) each axes
Vibration:0,04g/Hz, 20Hz-2kHz, 3 hours
Certifications:CE; FCC Class15, Part B

Features

  • 88 keys
  • Complete protection against dust and liquids according IP68 (submersible)
  • Low profile key design for easy and efficient cleaning
  • Blue LED-backlit (switchable)
  • Washable, no seams or crevices
  • Low profile key design for easy and efficient cleaning
  • Resistant against most common detergents and disinfection materials
  • Sterilized in seconds, no need for expensive sterilization methods
  • Ergonomically low profile chassis
  • Silent low noise typing
  • Low force and precise feedback key technology
  • Customized layouts can be realized quickly (laser etching)
  • MS Windows keys
  • USB-Interface

Ordering information

Part numberProduct nameFeatures
PS00520K2-MED-BL-USB-GERGerman layout
PS00521K2-MED-BL-USB-USUS layout
Additional layouts available on request!
Branche
Industrieautomation, Medizin, Lebensmittelverarbeitung
