Produktname

K10-IND-MGEH

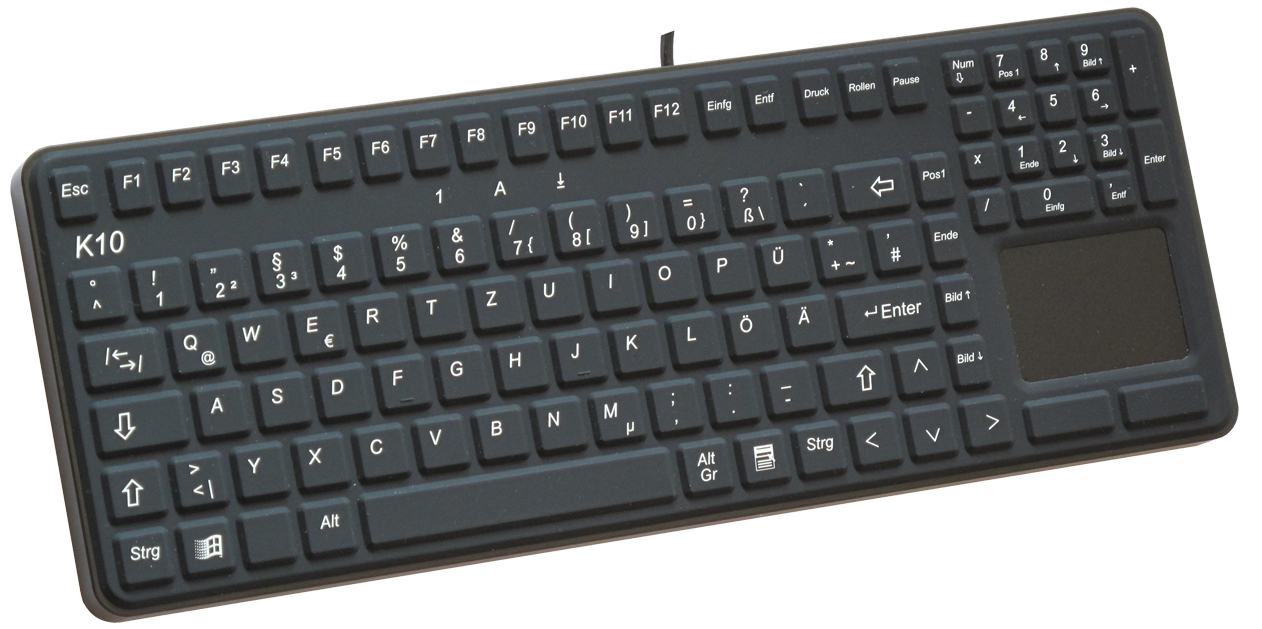

Produktbild
K10-IND-MGEH
Info



Number of keys:  ...................... 105
Protection:  ...................... IP68
Activation force: ...................... 1,2 N
Interface ...................... USB
Size: ...................... 368 x 138 x 20,5 mm
Operation temperature: ...................... 0 °C to +60 °C
Merkliste

K10-IND-MGEH

Technical specification

BezeichnungAngabe
Switching technology: Carbon-on-Gold contact
Number of keys: 105
Protection: IP68 (NEMA 4, 4X) (properly installed)
Key travel: 1,25 mm
Activation force: 1,2 N
Life: approx. 2 Mio. operations
Chassis:OEM
Interface: USB
Power:20mA@5V
Size:368 x 138 x 20,5 mm
Operation temperature: 0 °C to +60 °C
Humidity: to 100%
Shock:3x11 ms pulses (50g) each axes
Vibration:0,04g/Hz, 20Hz-2kHz, 3 hours
Certifications:CE; FCC Class15, Part B

Features

  • 105 keys
  • Full MFII functionality (including number pad)
  • Rugged aluminium chassis with rearside fixing elements (female threads, 4 x M4)
  • Complete protection against dust and liquids according IP68
  • Low profile key design for easy and efficient cleaning
  • Lock function to avoid unintended inputs during cleaning
  • Washable, no seams or crevices
  • Low profile key design for easy and efficient cleaning
  • Resistant against most common detergents and disinfection materials
  • Ergonomically low profile chassis
  • Silent low noise typing
  • Low force and precise feedback key technology
  • Incorporated high resolution touchpad
  • MS Windows keys
  • USB-Interface

Ordering information

Part numberProduct nameFeatures
PS00740K10-IND-MGEH-USB-GERGerman layout
PS00741K10-IND-MGEH-USB-USUS layout
Additional layouts available on request!
Branche
Industrieautomation, Logistik, Mobilanwendungen
