Produktname

CX46-600

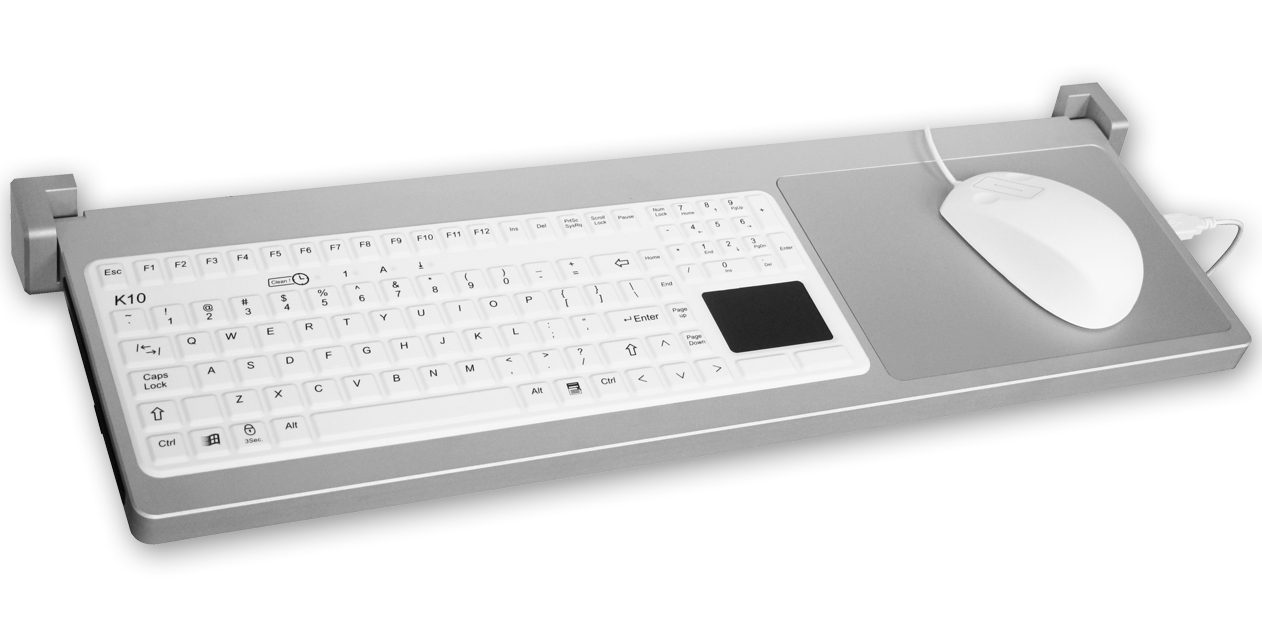

Produktbild
CX46-600
Info



Number of keys:  ...................... 105
Protection:  ...................... IP65 front
Activation force: ...................... 1,2 N
Interface ...................... USB 2.0 (3.0 possible)
Size: ...................... 634 x 190 x 24 mm
Operation temperature: ...................... 0 °C to +60 °C
Merkliste

CX46-600

Technical specification

BezeichnungAngabe
Material:Aluminium (anodized)
Protection:IP65 (frontside)
Rotation angle:102°
Interface:USB2.0 (3.0 on option)
Power requirements:50mA@5VDC (DVD max. 1A)
Size:634 x 190 x 24 mm
Temperature:0C° to +60°C
Certifications:CE

Features

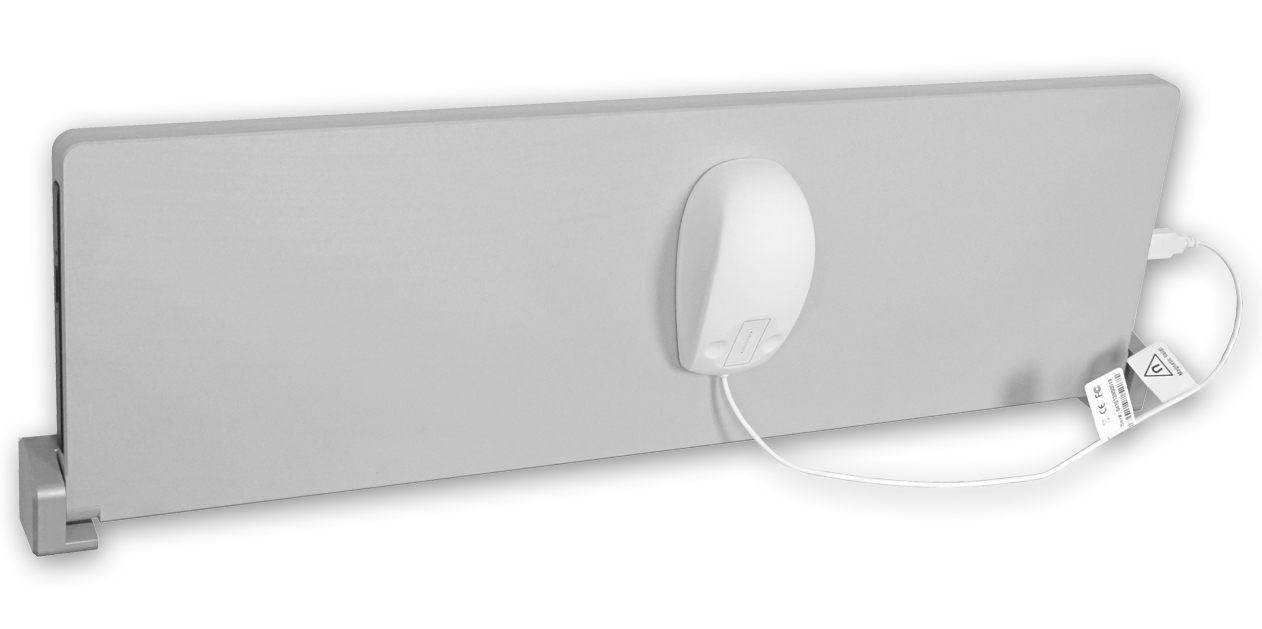

  • Swivel-mounted aluminium console to be mounted on vertical surfaces
  • Rotation angle 102°, integrated rotation damper
  • Fitting keyboards K10-OEM and X10-OEM
  • Front sealed according IP65
  • Included large mousepad for comfortable mouse operation

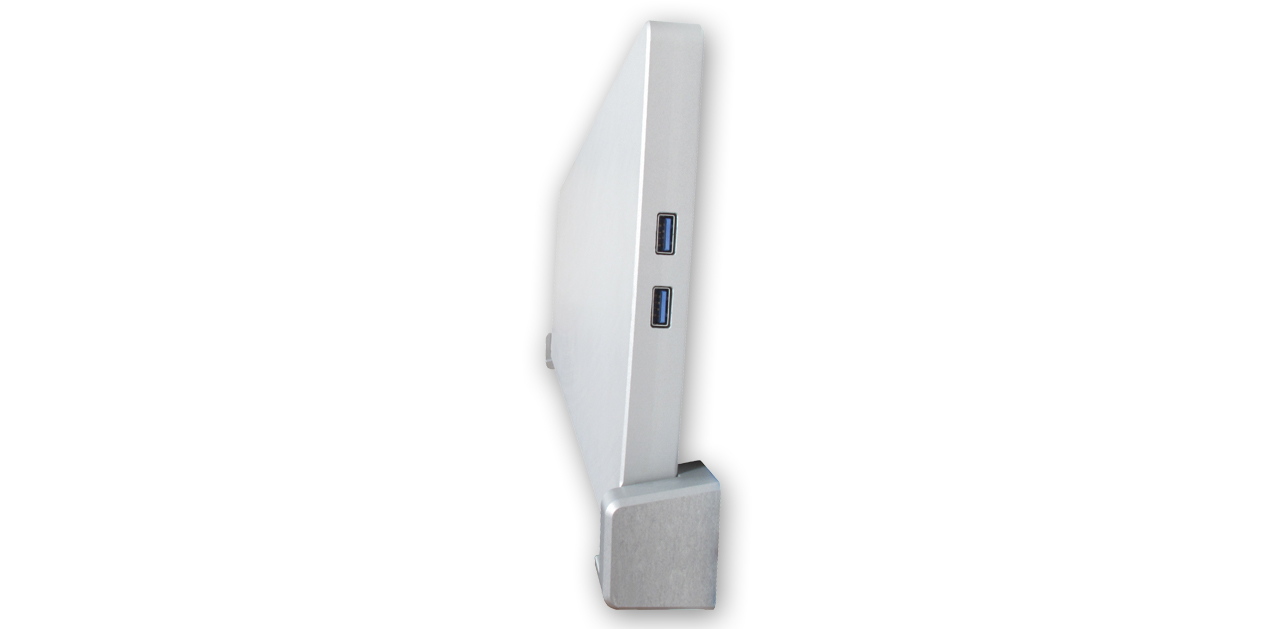

  • USB3.0-Hub with 2 external DS-ports (by default connected to the host via USB2.0 cable)
  • Depending on your demands, the cable configuration can be adapted to offer USB3.0 capabilities
  • Integrated DVD-Burner available (CX46-600-DVD)
  • Backlight option available on K10-OEM
  • Option magnetic hold for mouse in resting position (fitting mouse with magnets available)

Ordering information

Part numberProduct nameFeatures
PS00852CX46-600with mouse tray
PS00853CX46-600 DVDwith mouse tray, DVD
PK00578VBlech600Option mounting support
Branche
Industrieautomation, Medizin
