Produktname

X1-MED

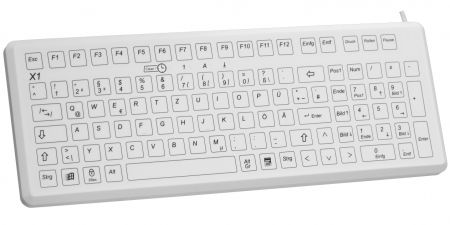

Produktbild
X1-MED
Info



Number of keys:  .......................... 105
Protection:  .......................... IP68
Activation force: .......................... 1,2 N
Interface .......................... USB
Size: .......................... 394 x 145 x 17mm
Operation temperature: .......................... -20 °C to +70 °C
Merkliste

X1-MED

Technical specification

BezeichnungAngabe
Switching technology: Carbon-on-Gold contact
Number of keys: 105 (incl. 12 Function keys)
Protection: IP68 (NEMA 4, 4X) - submersible
Key travel: 1,25 mm
Activation force: 1,2 N
Life: >10 Mio. operations
Chassis:Desktop
Interface: USB
Power:12mA@5V
Size:394 x 145 x 17 mm
Operation temperature: -20 °C to +70 °C
Humidity: to 100%
Shock:3x11 ms pulses (50g) each axes
Vibration:0,04g/Hz, 20Hz-2kHz, 3 hours
Certifications:CE; FCC Class15, Part B; EN 60601-1-2

Features

  • 105 keys, including 12 function keys and number pad
  • Complete protection against dust and liquids according IP68 (submersible)
  • NO profile front design to fulfil even highest hygiene demands
  • CleanRemind (operating time controlled cleaning/ disinfecting reminder)
  • Washable, no seams or crevices
  • CleanLock-Function to avoid unintended inputs
  • Resistant against most common detergents and disinfection materials
  • Sterilized in seconds, no need for expensive sterilization methods
  • Extended durability by multi layer front design
  • Silent low noise typing
  • Low force and precise feedback key technology
  • Magnetic fixing option
  • MS Windows keys
  • USB-Interface
  • EMC tested according EN 60601-1-2

Ordering information

Part numberProduct nameFeatures
PS00670X1-MED-USB-GERGerman layout
PS00671X1-MED-USB-USUS layout
Additional layouts available on request!
Branche
Industrieautomation, Medizin, Lebensmittelverarbeitung
