Produktname
K1-MED-BL

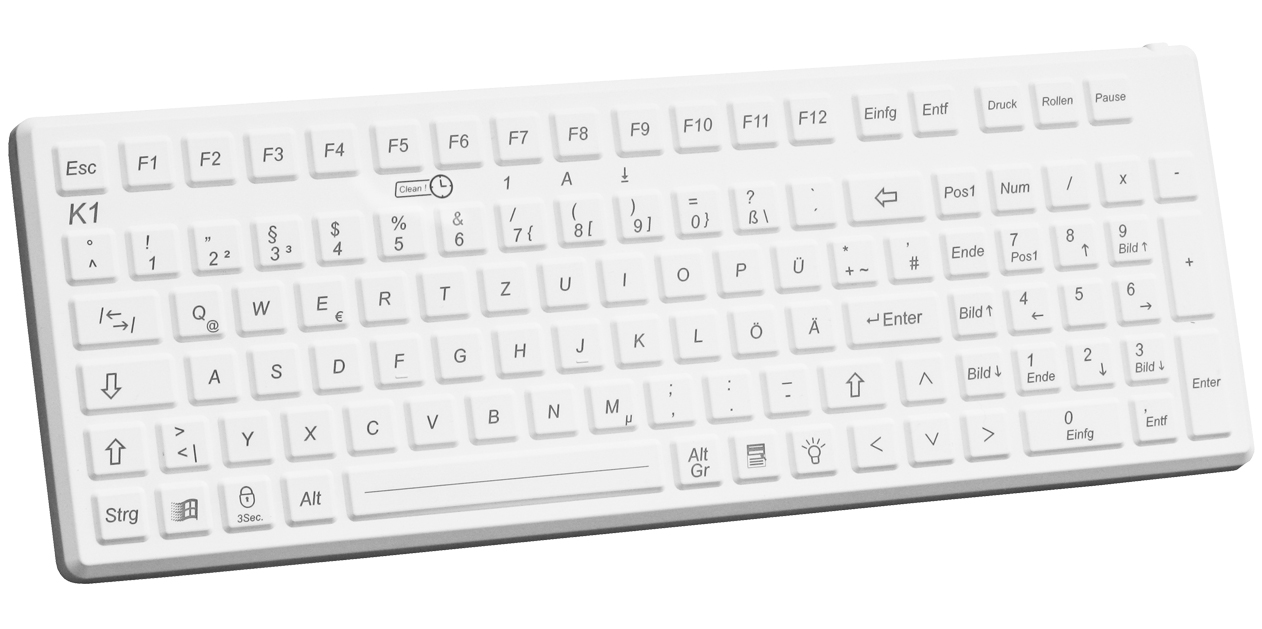

Produktbild
Info
| Number of keys: | .......................... | 105 |
| Protection: | .......................... | IP68 |
| Activation force: | .......................... | 1,2 N |
| Interface | .......................... | USB |
| Size: | .......................... | 392 x 141 x 12mm |
| Operation temperature: | .......................... | -20 °C to +70 °C |
Merkliste
Technical specification
| Bezeichnung | Angabe |
|---|---|
| Switching technology: | Carbon-on-Gold contact |
| Number of keys: | 105 (incl. 12 Function keys) |
| Protection: | IP68 (NEMA 4, 4X) - submersible |
| Key travel: | 1,25 mm |
| Activation force: | 1,2 N |
| Life: | >10 Mio. operations |
| Chassis: | Desktop |
| Interface: | USB |
| Power: | 12mA@5V (max. 200 mA backlight on) |
| Size: | 392 x 141 x 12 mm |
| Operation temperature: | -20 °C to +70 °C |
| Humidity: | to 100% |
| Shock: | 3x11 ms pulses (50g) each axes |
| Vibration: | 0,04g/Hz, 20Hz-2kHz, 3 hours |
| Certifications: | CE; FCC Class15, Part B; EN 60601-1-2 |
Features
- 105 keys, including 12 function keys and number pad
- Complete protection against dust and liquids according IP68 (submersible)
- CleanRemind (operating time controlled cleaning/ disinfecting reminder)
- Washable, no seams or crevices
- LED-backlight (dimmable) for use in dark environment
- Low profile key design for easy and efficient cleaning
- Lock function to avoid unintended inputs during cleaning
- Resistant against most common detergents and disinfection materials
- Sterilized in seconds, no need for expensive sterilization methods
- Silent low noise typing
- Low force and precise feedback key technology
- MS Windows keys
- USB-Interface
- EMC tested according EN 60601-1-2
Downloads
Ordering information
| Part number | Product name | Features |
|---|---|---|
| PS00650 | K1-MED-BL-USB-GER | German layout |
| PS00651 | K1-MED-BL-USB-US | US layout |
| Additional layouts available on request! |
Branche
Industrieautomation, Medizin, Lebensmittelverarbeitung
